Asynchronous feed with Spinner indicator in WPF with MVVM pattern
13 May 2020
Category: Mini
Hi everyone,
This is slowly becomming a series… :P Next task I wanted to get right was async process with BackgroundWorker.
I’m not an expert in asynchronous programming, but it seems to me that BW is better solution over async-await
model. Or at least when I want good control over the process.
This mini also includes FontAwesome Spinner
(you can find installation process in the link). I love this one and it’s easy to use.

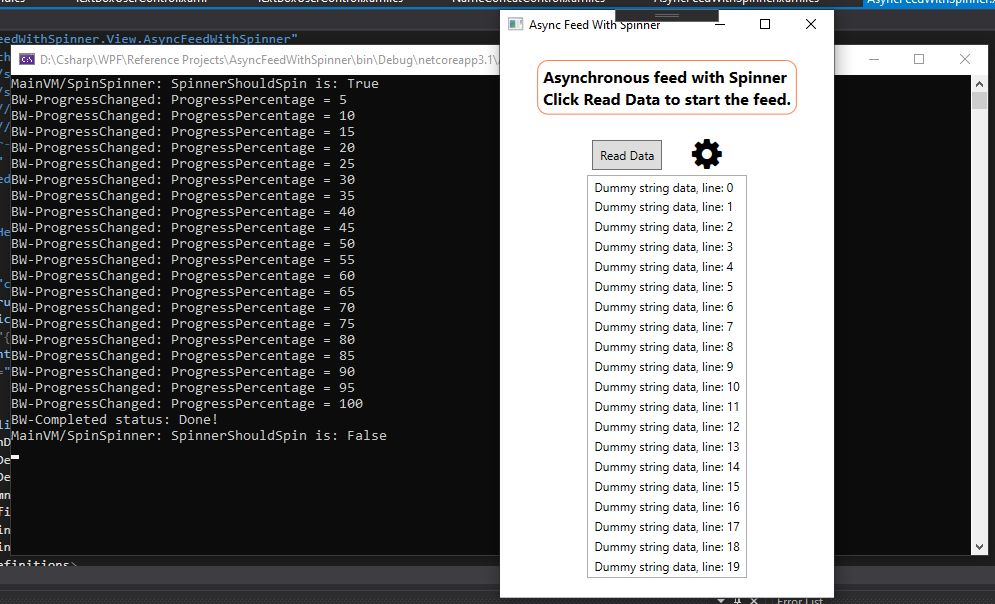

So, what does this mini do? It simulates a continuous feed from some data source. In this very simplified example
it’s just a delayed crawl through the list of data. But imagine loading post by post from an http request. This mini demonstrates a way to achieve it without a frozen app.
Important notes:
- You can update the UI thread from ProgressChanged and Completed methods, not from DoWork.
- Try not to wait for the feed to finish. If you click multiple times, multiple BackgroundWorkers are instantiated and are working all asynchronously. It might or might not be what you want tho!
And last but not least - this is definitely not exhaustive reference project for BackgroundWorkers, just a short
demonstration of how this works.
I hope this could help somebody on their path to conquer WPF. And as usual, there is a link to the repo with the project.
Cheers!
Petr
Main Window:
<Window x:Class="AsyncFeedWithSpinner.View.AsyncFeedWithSpinner"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:fa="http://schemas.fontawesome.io/icons/"
xmlns:local="clr-namespace:AsyncFeedWithSpinner.View"
mc:Ignorable="d"
Title="Async Feed With Spinner"
Height="350"
Width="350"
SizeToContent="Height"
>
<StackPanel x:Name="container" VerticalAlignment="Top" HorizontalAlignment="Center" Margin="0,20">
<Border BorderBrush="Coral" BorderThickness="1" CornerRadius="10" Margin="0,0,0,20">
<Label VerticalAlignment="Top" HorizontalAlignment="Center"
Content="{Binding Title}"
FontWeight="Bold"
FontSize="16"
/>
</Border>
<Grid VerticalAlignment="Center" HorizontalAlignment="Center">
<Grid.ColumnDefinitions>
<ColumnDefinition/>
<ColumnDefinition/>
</Grid.ColumnDefinitions>
<Grid.RowDefinitions>
<RowDefinition Height="auto"/>
<RowDefinition/>
</Grid.RowDefinitions>
<Button Content="Read Data"
Margin="5"
Grid.Column="0"
Grid.Row="0"
Command="{Binding SpinSpinnerCommand}"
/>
<fa:ImageAwesome Icon="Cog"
Grid.Column="1" Grid.Row="0"
Margin="10, 5"
Height="30"
Spin="{Binding SpinnerShouldSpin}"
VerticalAlignment="Center" HorizontalAlignment="Center"
/>
<ListBox Grid.Row="1"
Grid.Column="0"
Grid.ColumnSpan="2"
MinHeight="100"
x:Name="ReceivingListBox"
ItemsSource="{Binding ReceivedStrings}"/>
</Grid>
</StackPanel>
</Window>
MainWindow cs:
using AsyncFeedWithSpinner.ViewModel;
using System.Windows;
namespace AsyncFeedWithSpinner.View
{
/// <summary>
/// Interaction logic for AsyncFeedWithSpinner.xaml
/// </summary>
public partial class AsyncFeedWithSpinner : Window
{
MainVM MainVM;
public AsyncFeedWithSpinner()
{
InitializeComponent();
MainVM = new MainVM();
container.DataContext = MainVM;
}
}
}
MainVM:
using AsyncFeedWithSpinner.ViewModel.Commands;
using JetBrains.Annotations;
using System;
using System.Collections.Generic;
using System.Collections.ObjectModel;
using System.ComponentModel;
using System.Runtime.CompilerServices;
using System.Threading;
namespace AsyncFeedWithSpinner.ViewModel
{
public class MainVM : INotifyPropertyChanged
{
private bool spinnerShouldSpin;
public bool SpinnerShouldSpin
{
get { return spinnerShouldSpin; }
set { spinnerShouldSpin = value; OnPropertyChanged(nameof(SpinnerShouldSpin)); }
}
private string title;
public string Title
{
get { return title; }
set { title = value; OnPropertyChanged(nameof(Title)); }
}
public ObservableCollection<string> ReceivedStrings { get; set; }
private List<string> dummyStringData = new List<string>();
public FetchDataCommand SpinSpinnerCommand { get; set; }
public MainVM()
{
spinnerShouldSpin = false;
Title = "Asynchronous feed with Spinner\nClick Read Data to start the feed.";
ReceivedStrings = new ObservableCollection<string>();
SpinSpinnerCommand = new FetchDataCommand(this);
generateDummyData();
}
private void generateDummyData()
{
for (int i = 0; i < 20; i++)
{
dummyStringData.Add($"Dummy string data, line: {i}");
}
}
public void FetchData()
{
ReceivedStrings.Clear();
BackgroundWorker worker = new BackgroundWorker();
worker.DoWork += BackgroundWorker_DoWork;
worker.WorkerReportsProgress = true;
worker.ProgressChanged += BackgroundWorker_ProgressChanged;
worker.RunWorkerCompleted += BackgroundWorker_RunWorkerCompleted;
worker.RunWorkerAsync(new BackgrounWorkerState(dummyStringData));
}
/// <summary>
/// Wrapper class for BackgroundWorker RunWorkerAsync Argument
/// </summary>
sealed private class BackgrounWorkerState
{
public List<string> stringList { get; private set; }
public BackgrounWorkerState(List<string> stringList)
{
this.stringList = stringList ?? throw new ArgumentNullException(nameof(stringList));
}
}
/// <summary>
/// Cant update UI thread from DoWork so instead sending data into ProgressChanged
/// </summary>
/// <param name="sender">BackgroundWorker</param>
/// <param name="e"></param>
private void BackgroundWorker_DoWork(object sender, DoWorkEventArgs e)
{
SpinSpinner(true);
var workingData = (e.Argument as BackgrounWorkerState).stringList;
BackgroundWorker worker = sender as BackgroundWorker;
double progressStep = (100 / workingData.Count);
double currentProgress = 0;
workingData.ForEach(s =>
{
currentProgress += progressStep;
worker.ReportProgress((int)currentProgress, s);
Thread.Sleep(200);
});
}
/// <summary>
/// e.UserState holds state data sent from DoWork
/// </summary>
/// <param name="sender">BackgroundWorker</param>
/// <param name="e"></param>
private void BackgroundWorker_ProgressChanged(object sender, ProgressChangedEventArgs e)
{
if(e.UserState != null)
{
ReceivedStrings.Add((string)e.UserState);
}
Console.WriteLine($"BW-ProgressChanged: ProgressPercentage = {e.ProgressPercentage}");
}
private void BackgroundWorker_RunWorkerCompleted(object sender, RunWorkerCompletedEventArgs e)
{
var resultLabel = "";
if (e.Cancelled == true)
{
resultLabel = "Canceled!";
}
else if (e.Error != null)
{
resultLabel = "Error: " + e.Error.Message;
}
else
{
resultLabel = "Done!";
}
Console.WriteLine($"BW-Completed status: {resultLabel}");
SpinSpinner(false);
}
public void SpinSpinner(bool shouldSpin)
{
SpinnerShouldSpin = shouldSpin;
Console.WriteLine($"MainVM/SpinSpinner: SpinnerShouldSpin is: {SpinnerShouldSpin}");
}
public event PropertyChangedEventHandler PropertyChanged;
[NotifyPropertyChangedInvocator]
protected virtual void OnPropertyChanged([CallerMemberName] string propertyName = null)
{
PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(propertyName));
}
}
}
fetchDataCommand:
using System;
using System.Windows.Input;
namespace AsyncFeedWithSpinner.ViewModel.Commands
{
public class FetchDataCommand : ICommand
{
private MainVM VM = null;
public event EventHandler CanExecuteChanged;
public FetchDataCommand(MainVM vM)
{
VM = vM ?? throw new ArgumentNullException(nameof(vM));
}
public bool CanExecute(object parameter)
{
return true;
}
public void Execute(object parameter)
{
VM.FetchData();
}
}
}
Cheers!
Petr
