Basic animations in WPF
07 May 2024
Category: Mini
Hi everyone,
This is super basic example of how to use animations in WPF.
I used a Resource Dictionary to store animations and then merged it into the main window.

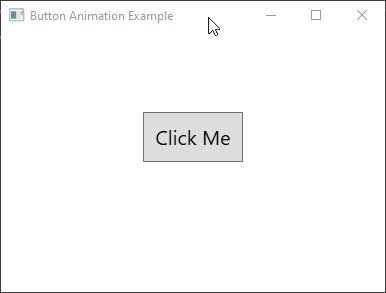

The animations are triggered by button clicks. The first button triggers the animation of the second button
appearing and the second button triggers the animation of the first button appearing.
The animations are simple scale and opacity animations.
Important takeaways:
- Use Resource Dictionary to store animations, make those animations generic and reusable
- Storyboards are set in the pattern x:Key=”StoryboardName” and then accessed in the code behind. But the Resource Dictionary has to be first merged into window xaml for code behind to find it.
- inside the Storyboard are all animate properties you need to animate. In this case, it’s ScaleX, ScaleY, and Opacity. So 3 blocks in total.
- Animated UIElements should have RenderTransformOrigin set to 0.5,0.5 to scale from the center
- Animated UIElements should have Button.RenderTransform (in this case) set as
to be able to animate the scale. Without this, scaling will not work properly.
Main Window:
<Window x:Class="ButtonAnimationExample.MainWindow"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
Title="Button Animation Example" Width="400" Height="300">
<Window.Resources>
<ResourceDictionary>
<ResourceDictionary.MergedDictionaries>
<!-- Merge the resource dictionary containing animations -->
<ResourceDictionary Source="Resources/Animations.xaml"/>
</ResourceDictionary.MergedDictionaries>
<Style TargetType="Button">
<Setter Property="Height" Value="50"></Setter>
<Setter Property="Width" Value="100"></Setter>
<Setter Property="FontSize" Value="20"></Setter>
<Setter Property="HorizontalAlignment" Value="Center"></Setter>
<Setter Property="VerticalAlignment" Value="Center"></Setter>
<Setter Property="RenderTransformOrigin" Value="0.5,0.5"></Setter>
</Style>
</ResourceDictionary>
</Window.Resources>
<Grid VerticalAlignment="Center">
<Grid.RowDefinitions>
<RowDefinition Height="Auto"/>
<RowDefinition Height="Auto"/>
</Grid.RowDefinitions>
<!-- Button that triggers the animation -->
<Button x:Name="TriggerButton" Content="Click Me"
Grid.Row="0"
Click="TriggerButton_Click"
>
<Button.RenderTransform>
<ScaleTransform ScaleX="1" ScaleY="1"/>
</Button.RenderTransform>
</Button>
<!-- Button to appear with animation -->
<Button x:Name="TargetButton" Content="Aaaaand back"
Grid.Row="1"
Opacity="0"
Click="TargetButton_OnClick"
Width="200"
>
<Button.RenderTransform>
<ScaleTransform ScaleX="0" ScaleY="0"/>
</Button.RenderTransform>
</Button>
</Grid>
</Window>
Code Behind:
using System.Windows;
using System.Windows.Media.Animation;
namespace ButtonAnimationExample
{
public partial class MainWindow : Window
{
private readonly Storyboard _storyboardButtonShow;
private readonly Storyboard _storyboardButtonHide;
public MainWindow()
{
InitializeComponent();
// Access animations from the merged resource dictionary
_storyboardButtonShow = (Storyboard) FindResource("StoryboardButtonShow");
_storyboardButtonHide = (Storyboard) FindResource("StoryboardButtonHide");
}
private void TriggerButton_Click(object sender, RoutedEventArgs e)
{
_storyboardButtonShow.Begin(TargetButton);
_storyboardButtonHide.Begin(TriggerButton);
}
private void TargetButton_OnClick(object sender, RoutedEventArgs e)
{
_storyboardButtonHide.Begin(TargetButton);
_storyboardButtonShow.Begin(TriggerButton);
}
}
}
Resources/Animations.xaml:
<ResourceDictionary xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml">
<!-- Define the animation for scaling and opacity -->
<Storyboard x:Key="StoryboardButtonShow">
<!-- Scale animation X-->
<DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(ScaleTransform.ScaleX)"
Duration="0:0:1.0">
<!-- Easing functions are used to make the animation more smooth -->
<EasingDoubleKeyFrame KeyTime="0:0:0" Value="0"/>
<EasingDoubleKeyFrame KeyTime="0:0:0.5" Value="0"/>
<EasingDoubleKeyFrame KeyTime="0:0:1" Value="1"/>
</DoubleAnimationUsingKeyFrames>
<!-- Scale animation Y-->
<DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(ScaleTransform.ScaleY)"
Duration="0:0:1.0">
<EasingDoubleKeyFrame KeyTime="0:0:0" Value="0"/>
<EasingDoubleKeyFrame KeyTime="0:0:0.5" Value="0"/>
<EasingDoubleKeyFrame KeyTime="0:0:1" Value="1"/>
</DoubleAnimationUsingKeyFrames>
<!-- Opacity animation -->
<DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="Opacity"
Duration="0:0:1.0">
<EasingDoubleKeyFrame KeyTime="0:0:0" Value="0"/>
<EasingDoubleKeyFrame KeyTime="0:0:0.5" Value="0"/>
<EasingDoubleKeyFrame KeyTime="0:0:1" Value="1"/>
</DoubleAnimationUsingKeyFrames>
</Storyboard>
<!-- Define the reverse animation -->
<Storyboard x:Key="StoryboardButtonHide">
<!-- Scale animation X-->
<DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(ScaleTransform.ScaleX)"
Duration="0:0:0.5">
<EasingDoubleKeyFrame KeyTime="0:0:0" Value="1"/>
<EasingDoubleKeyFrame KeyTime="0:0:0.5" Value="0"/>
</DoubleAnimationUsingKeyFrames>
<!-- Scale animation Y-->
<DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(ScaleTransform.ScaleY)"
Duration="0:0:0.5">
<EasingDoubleKeyFrame KeyTime="0:0:0" Value="1"/>
<EasingDoubleKeyFrame KeyTime="0:0:0.5" Value="0"/>
</DoubleAnimationUsingKeyFrames>
<!-- Opacity animation -->
<DoubleAnimation Storyboard.TargetProperty="Opacity"
Duration="0:0:0.5" To="0"/>
</Storyboard>
</ResourceDictionary>
Cheers!
Petr
